SpeedLane Pro Dual Beam Radar

Houston Radar SpeedLane Pro™ is state of the art true dual beam, low power side-fire radar. It is designed to accurately detect lane, speed and class of individual vehicles and compute per lane volume, occupancy, gap, average speed, 85th percentile and headway parameters.

Features

• Simultaneously measures all vehicles in 16 user defined lanes with a maximum detection range of 255 feet.
• Patent pending true dual beam “speed trap” technology inherently provides accurate measurements without the need for in situ calibration.
• World’s lowest power usage highly integrated multi-lane traffic measurement radar. At 0.85 Watts SpeedLane requires 10X less power than competing products.
• FCC and CE approved for full 250MHz operation to suite variety of application requirements.
• Mounts on the side of the road for non-intrusive traffic data collection and works in all weather and lighting conditions.

HD Camera and More

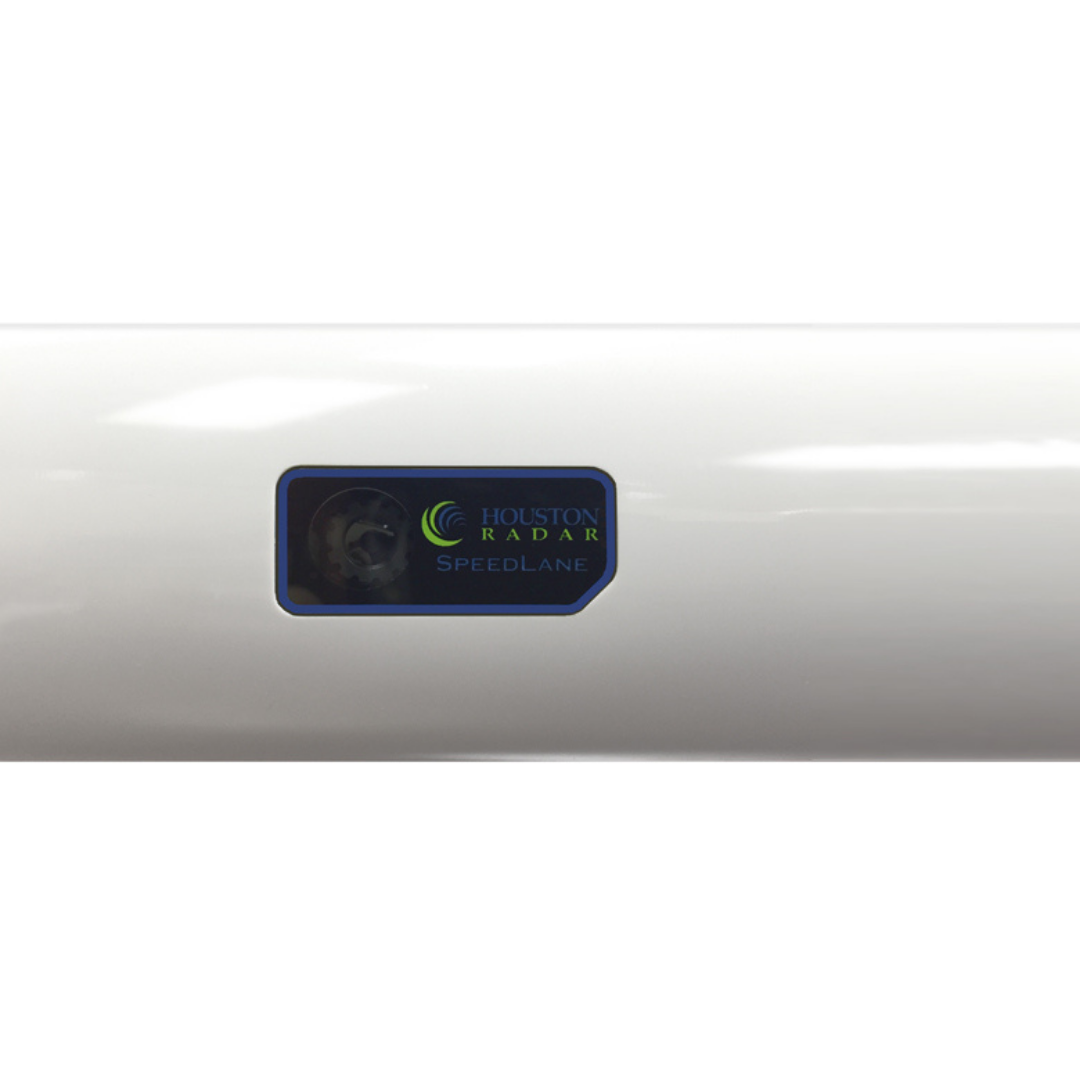

• Built-in 1.3MP HD video camera for sighting makes setup a snap and allows convenient remote monitoring of traffic.
• All traffic measurements are on per vehicle, per-lane basis, available in real-time and stored in device memory.
• Lane-by-lane vehicle counts, length based class, average and 85th percentile speeds, occupancy, headway and gap measurements.
• Companion Windows application provides intuitive GUI to set all configuration parameters, display real time plots of targets and view snapshots & streaming HD video.
• Built-in long range Class I 2.1+EDR Bluetooth, RS232/RS485 serial ports and Ethernet.
• 512 Mbytes of on-board storage plus SD card expansion slot.
• Comprehensive Houston Radar protocol, C and C# SDK.
• Powerful SQL based query interface for historical data.

Optional Equipment

• Built-in UPS with rechargeable battery keeps unit running for over 24hrs on loss of external power.
• MPPT solar charger for optimal winter and cloudy day charging.
• On-board 96Whr LiFePO4 battery for temporary or solar installations.
• Wireless 3G GSM cellular for remote access.
• POE (power over Ethernet).
